SCM High Deflection Motor Mount

Not Available to Buy Online - Please contact us for more information.

 (0) 98200 50138
 sales@polymax.in

Be the first to review this product

Quick Overview

SCM mounts are ideal for use as shock mounts or high isolation in static applications such as small pumps, engines and light electronic equipment.

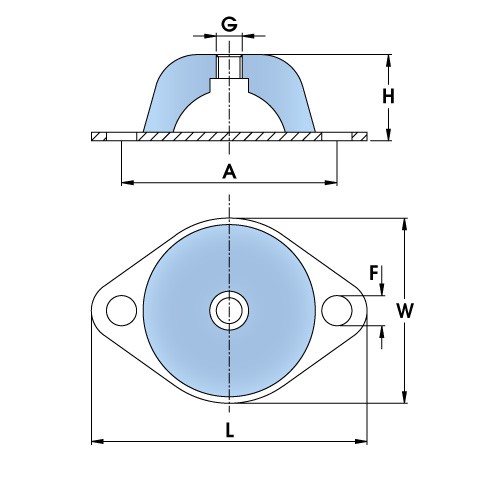

Polymax SCM-type Flange Mounts | Oval Base
Article No. H
(mm)
L
(mm)
W
(mm)
GA
(mm)
F
(mm)
Base Shape
SCM310160 160.0000310.0000310.0000M24250x25018Square
SCM6420 20.000064.000043.0000M6507Oval
SCM8525M10 25.000088.000059.0000M10668Oval
SCM8525 25.000088.000059.0000M8668Oval
SCM10027 27.0000100.000070.0000M8767Oval
SCM10027/1 27.0000100.000070.0000M87610Oval
SCM11435 35.0000115.000076.0000M109210Oval
SCM13640 40.0000136.000096.0000M1011011.5Oval
SCM15145 45.0000151.0000101.0000M1012411.5Oval
SCM15063 63.0000150.0000150.0000M1212014.5Square
SCM20085 85.0000200.0000200.0000M16160x16014.5Square

Details

SCM mounts are ideal for use on static and mobile shock applications such as small pumps, engines and fragile and light electronic equipment.

Features:
  • Achieves high isolation values (both active and passive) of low frequency vibration
  • Attenuates shock loads due to its deflection capacity ideal for mounting sensitive electronics and lights in transit.
  • Available in stainless steel metal for food & mining industry applications
Applications:
  • Fans
  • Pumps
  • Stationary generator sets
  • Vibrating screens
  • Bulk bin load and discharge units
  • Computers, security cameras
  • Packaging and transit case mountings

45 ShA 60 ShA
Part No MAX Kg's MAX mm MAX  Kg's MAX mm
SCM6420 3.5 3 9 3.5
SCM 8525 20 4 40 4.5
SCM 8525M10 20 4 40 4.5
SCM 10027 30 4.5 55 5.0
SCM 11435 40 6.0 65 8.5
SCM 13640 70 8.5 130 11
SCM 15063 302 14 500 13
SCM 15145 130 10.0 220 10.0
SCM 20085 380 18 750 18
SCM 310160 1400 45 2500 50

Additional Information

Material NR
*Dimensions can vary, they are typical only.
